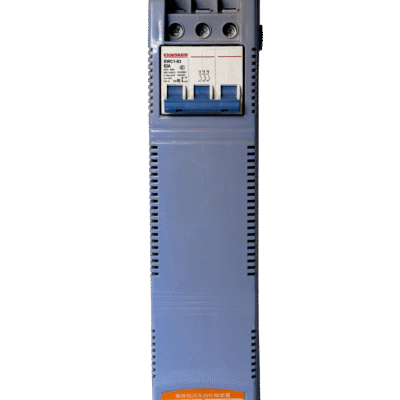

Anti-Harmonic Smart Capacitor – Reactive Power Compensation for Distorted Grids

Introduction:
In today’s industrial facilities, the proliferation of non-linear loads (VFDs, SMPS, LED lighting) generates harmonics that degrade power quality and pose a severe risk to standard capacitor banks—causing resonance, overloading, and premature failure. Our Anti-Harmonic Smart Capacitor is the engineered solution. It combines a precision-matched detuned reactor with a long-life metallized film capacitor and an intelligent controller into a single, robust unit. This design not only safely corrects power factor in distorted environments but also actively suppresses system resonance, delivering reliable performance, maximizing energy savings, and protecting your electrical infrastructure.

Key Features & Benefits:

1. Built-in Harmonic Protection & Resonance Suppression:

   • Feature: Integrated detuned reactor (typically 7% for 5th/7th harmonic mitigation or 14% for broader protection). This creates a series-resonant frequency below the lowest dominant harmonic, acting as a high impedance path.

   • Benefit: Prevents dangerous parallel resonance with network inductance, drastically reducing harmonic current flow into the capacitor. This eliminates overheating and extends capacitor lifespan by up to 3-5x compared to standard units in harsh environments.

2. Advanced Intelligence for Optimal Performance:

   • Feature: Onboard 16/32-bit microprocessor with adaptive control algorithms. Features include: automatic power factor target setting, cyclic switching (first-on-last-off), phase-unbalance compensation, and comprehensive self-diagnostics.

   • Benefit: Ensures precise, dynamic compensation with minimal switching operations, reducing wear and preventing over-compensation. Simplifies setup and optimizes system efficiency autonomously.

3. Robust, All-in-One Modular Design:

   • Feature: Factory-tuned and pre-wired reactor-capacitor module with integrated intelligent switch (thyristor or high-performance contactor) and protection devices in a compact, ventilated enclosure.

   • Benefit: Slashes installation time and costs by up to 60%. Enables modular, plug-and-play expansion. Offers superior reliability over traditional discrete component assemblies.

4. Comprehensive Multi-Layer Safety & Protection:

   • Feature: Full suite of protections: Internal damping resistors, special HRC fuses, over-temperature sensor, over-voltage/current protection, and zero-voltage switching capability.

   • Benefit: Provides fail-safe operation, minimizes inrush currents, and prevents catastrophic failures. Ensures personnel safety and protects downstream equipment.

5. Operational Transparency & Communication:

   • Feature: Clear LCD/HMI interface displaying real-time data: PF, kVAr, V, I, kW, THDv%, THDi%, temperature, and fault history. Optional RS485 communication with Modbus RTU protocol.

   • Benefit: Enables instant health monitoring and seamless integration into SCADA, BMS, or energy management systems for centralized control and data logging.

Technical Specifications:

Ideal Applications:

• Industrial Manufacturing: Plants with welding machines, induction furnaces, large VFDs, and CNC machinery.

• Commercial Buildings: Data centers, hospitals, shopping malls, and offices with dense switching-mode power supplies and LED lighting.

• Renewable Energy Sites: Solar/Wind inverter stations requiring grid-side power factor compliance.

• Water & Wastewater Treatment: Facilities with large pump drives and aeration blowers.

Value Proposition:

• Maximize Energy Savings: Achieve and maintain a target power factor (e.g., 0.95-0.99) to eliminate utility penalties and reduce I²R losses.

• Ensure System Reliability: Eliminate capacitor failures caused by harmonics, reducing unplanned downtime and maintenance costs.

• Future-Proof Investment: Intelligent design adapts to changing load patterns and provides data for energy audits.

• Simplify Compliance: Helps meet IEEE 519 or similar standards for harmonic current distortion at the point of common coupling (PCC).

Installation & Service:

• Design: Our engineering team provides free system analysis and sizing support.

• Installation: Modular design allows for quick cabinet installation. Clear phase and terminal labeling simplifies wiring.

• Warranty & Support: Backed by a [e.g., 3 to 5-Year] warranty, with global technical support and spare parts availability.

Ordering Information:

• Specify: System Voltage, Required kVAr per step, Detuning Impedance (%), Switching Type (Thyristor/Contactor), and Communication needs.

• Custom Configurations available for specific harmonic spectra or extreme environmental conditions.
