Product Description:

General
Automatic transfer switch is a high-tech product developed by our company, comply with IEC 60947-6-1 << Low-voltage switchgear and controlgear- Part 6-1: Multiple function equipment-Transfer switching equipment >>. The parts and components of the product have under take strict aging test and inspection test. The finished product have been powered and aging tested at a continuous high temperature for 24 hours, and passed the loading test before leaving the factory, to ensuring the reliability and safety of the product.
Suitable for AC400V and below, rated frequency 50Hz. In case of phase failure, over-voltage, under-voltage and other faults of the power supply, the transfer switch can quickly switch from the main power supply to the alternative power supply under the control of ATS controller ( The alternative power supply must be normal at this time). It can be also put the load in an middle position when needed ( two way power OFF position), so the load neither connected to the main power supply nor to the alternative power supply.
It is widely used for fire-fighting system, post and telecommunication stations, hospitals, hotels, urban rail system, high buildings, industrial workshop, television stations etc., places which need continuous power supply. Mains power source can be grid power, self-starting generator sets, battery packs etc.

Q＆A

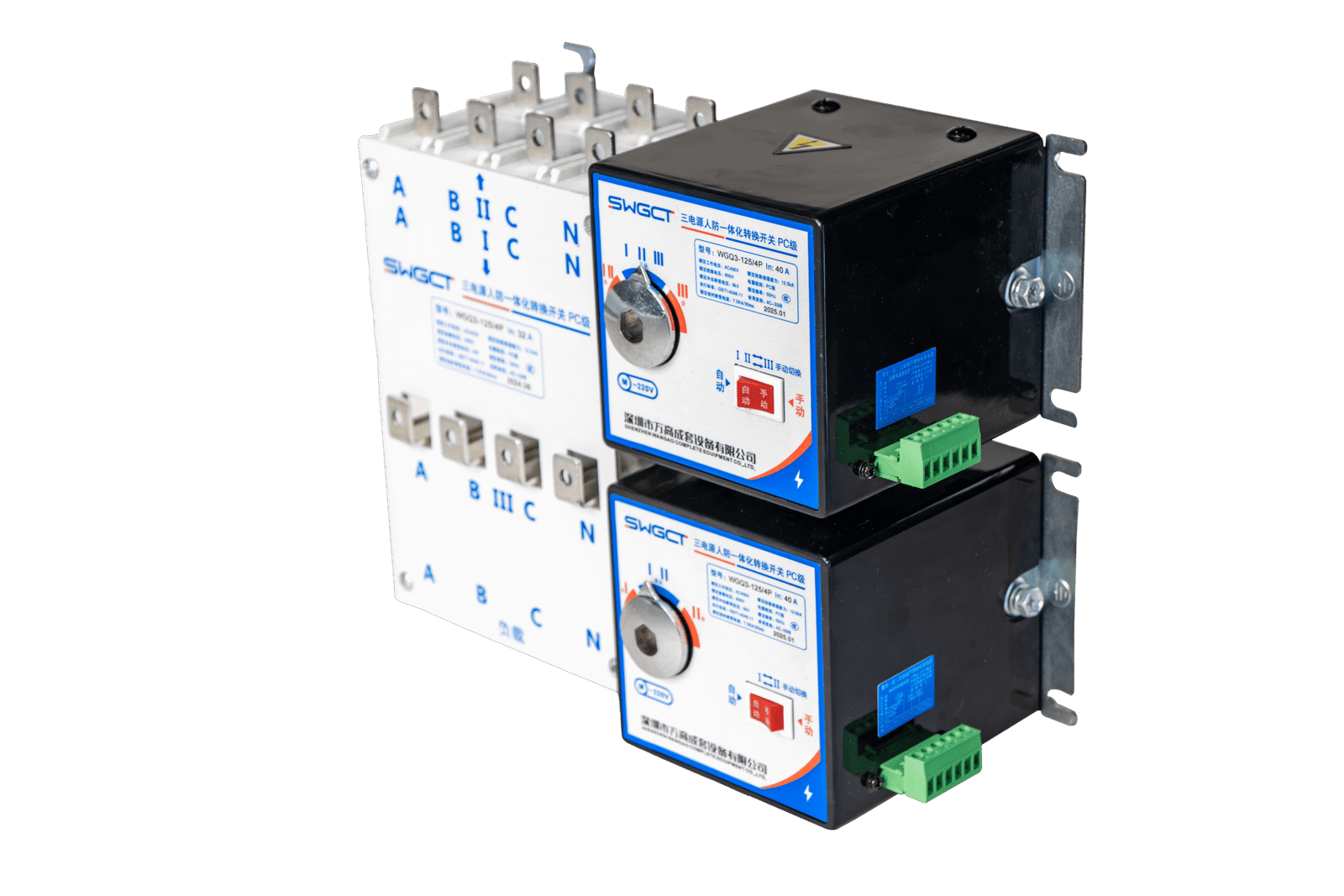

Q1: What is the primary function of the WGQ1(AX1) Dual Power Transfer Switch?

A1: The primary function is to automatically switch electrical loads between two independent power sources, typically the main utility (Normal) power and an emergency backup source (Emergency/Generator power). It ensures power continuity by quickly transferring the load when the normal source fails or its quality degrades.

Q2: What does the “Dual Power” designation mean for this switch?

A2: “Dual Power” signifies that the switch is designed to manage and switch between two separate electrical inputs. This is the standard configuration for most backup systems, providing redundancy by utilizing one main source and one backup source.

Q3: Is the WGQ1(AX1) an Automatic Transfer Switch (ATS)?

A3: Yes, the WGQ1(AX1) operates as an Automatic Transfer Switch (ATS). It constantly monitors the primary power source and initiates the transfer sequence automatically without human intervention upon detecting a fault, and it transfers back when the primary power is restored.

Q4: How does the WGQ1(AX1) ensure safety during the transfer process?

A4: Safety is ensured through mechanical and electrical interlocking. These systems strictly prevent the two power sources from being connected to the load simultaneously. This eliminates the risk of short circuits, back-feeding, and potential damage to equipment or the utility grid.

Q5: In which environments or applications is the WGQ1(AX1) commonly used?

A5: The WGQ1(AX1) is widely used in applications where downtime is unacceptable, such as:

• Commercial Office Buildings and High-Rise Residential Areas.

• Small to Mid-sized Data Centers and Server Rooms.

• Fire Protection and Emergency Lighting Systems.

• Industrial Facilities and Telecommunication Stations.
